High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising

  • 1
  • 2
  • 3

Weight : 6.4kg

LED Type : High Brightness DIP

Cabinet Size : 1000x1000mm

Service : Front and Rear Service

Pixel Pitch : P10.4mm

Type : Outdoor Advertising LED Mesh Display

Brand Name : TBC LED

Model Number : P10.4mm

Certification : FCC, CE, ROHS

Place of Origin : China

MOQ : 10sqm

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 sqm per month

Delivery Time : 45 days

Packaging Details : Plywood box

Contact Now

Outdoor Advertising LED Mesh Screen Display | High Brightness DIP LED Billboard for Building Facade & Glass Curtain Wall
3840 High Refresh Rate Outdoor Advertising LED Mesh Display for Buildings
Applications of Outdoor Advertising LED Mesh Display
Building Facade / Glass Curtain Wall

The LED grid screen requires minimal steel structure during installation, significantly reducing impact on building surfaces and glass curtain walls. Its lightweight, thin, and transparent design ensures adequate lighting and ventilation while preserving the building's aesthetic appearance.

High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising

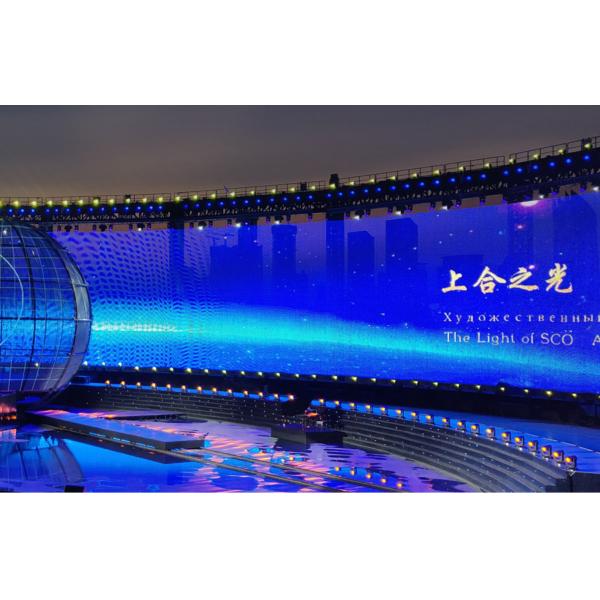

Cultural Tourism Project / Stage Beauty

LED grid screens can be customized for diverse cultural tourism projects and stage designs. Their transparent, thin, and lightweight characteristics create strong perspective effects, extending picture depth and producing stunning visual overlays between screen images and real backgrounds.

High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising
Park Square / Science and Technology Exhibition Hall

The flexible, customizable grid screen design adapts to various shapes and building surfaces. These environments enable creative lighting implementations including somatosensory interaction, infrared induction, and lighting scene interaction.

High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising
Quick Details
  • Pixel Pitch: 10.4mm, 15.625mm, 31.25mm
  • DIP346 LED, high brightness and durable for outdoor use
  • Greyscale: 16bits
  • Cabinet size: 500x1000mm Die Cast Aluminum
  • Recommended Viewing Distance: 10-16m
  • Cabinet Material: Die Cast Aluminum Cabinet, 21kg Weight
  • Refresh Rate: 3840Hz
  • Ingress Rate: IP68 Outdoor Standard Connectors
  • Quality Certificate: CE, RoHS, FCC, ETL
  • Brightness: >7000-8500cd/sqm
  • Curve Installation: Yes, Concave and Convex Available
Technical Specifications
Parameter EV10.4 EV15 EV31.25
LEDs1R1G1B1R1G1B1R1G1B
LED TypeSMD1921DIP346DIP346
Pixel Pitch10.4mm15.625-31.25mm31.25-31.25mm
Unit SizeW1000×H1000mmW500×H1000mmW500×H1000mm
Resolution9216dots/㎡2048dots/㎡1024dots/㎡
Unit DirectionVerticalVertical HorizontalVertical Horizontal
Transparency Rate45%75%85%
Brightness≥5500nit≥7000nit≥3500nit
Weight22KG/㎡21KG/㎡19KG/㎡
Max Consumption480W/㎡300W/㎡280W/㎡
Average Consumption160W/㎡130W/㎡125W/㎡
Viewing AngleH120°/V120°H120°/V120°H120°/V120°
Protection LevelIP68IP68IP68
Tube Structure1 row, 4 columns1 row, 2 columns1 row, 2 columns
Tube Width47mm8.5mm8.5mm
Thickness110mm110mm110mm
Install Depth150mm150mm150mm
Heat DissipationConvective heat dissipation
Wind DissipationLevel 12
Power SupplyPower supply with PFC
InstallationFast install
Fire Safety10S/unit
Fire ResistanceFull VO grade
ServiceFront, Back
Control ModeSteady state
Color Temperature3200-9300K
Refresh Rate60Hz
Working Temperature-40℃ to 70℃
Storage Temperature-55℃ to 120℃
Life Time≥100,000 hours
Input VoltageAC110-220V
Grey Grade16bit
Seismic Capability10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Product Description

TBC LED EV Series outdoor advertising LED Mesh billboards include P12mm, P15.625mm, and P20mm models. Key features include:

  • Advanced LED strip design for easy installation and service
  • Strong tail board design ensuring quick installation and smooth surface
  • IP68 weather design with advanced heat sink shell for reliable long-term use
  • 7000-8500 nits high brightness for excellent visibility
  • Waterproof and wind resistant construction for outdoor durability
Key Features

Super thermal conductivity material improves heat dissipation performance by 80%. Industrial grade IP65 full protection ensures stable operation in extreme climate conditions from -40℃ to 60℃.

Highly permeable windproof design with wind resistance level 12 capability.

LED Mesh screens provide significant cost savings:

  • 70% savings on steel structure cost
  • 80% savings on labor cost
  • 75% savings on transportation and logistics cost
  • 80% savings on maintenance and operation cost
  • 70% savings on electricity cost
Product Images
High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising High Brightness DIP LED Mesh Billboard with 3840Hz Refresh Rate and IP68 Waterproof for Outdoor Advertising
